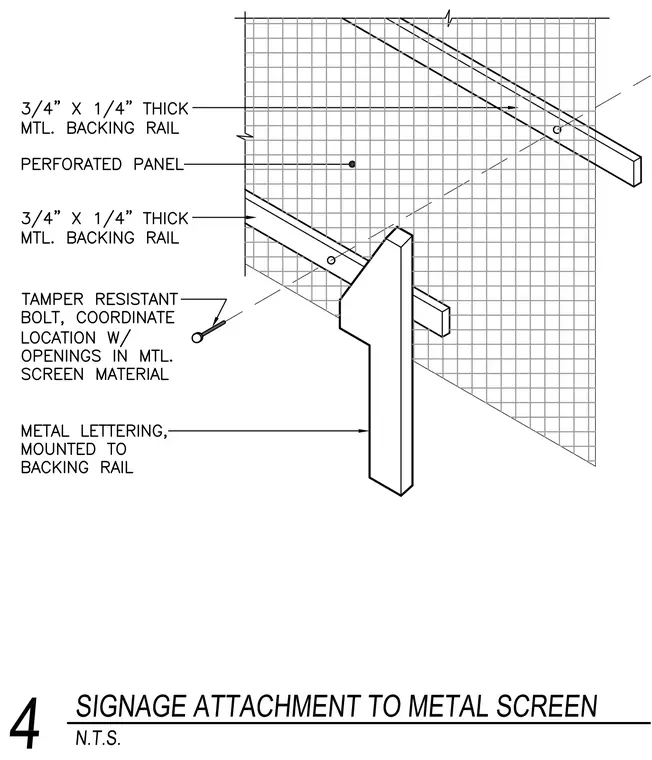

Metal lettering is mounted directly to horizontal metal backing rails measuring three-quarters of an inch by one-quarter of an inch thick. These backing rails are fastened behind a perforated metal panel screen using tamper-resistant bolts coordinated with the openings in the metal screen material.
