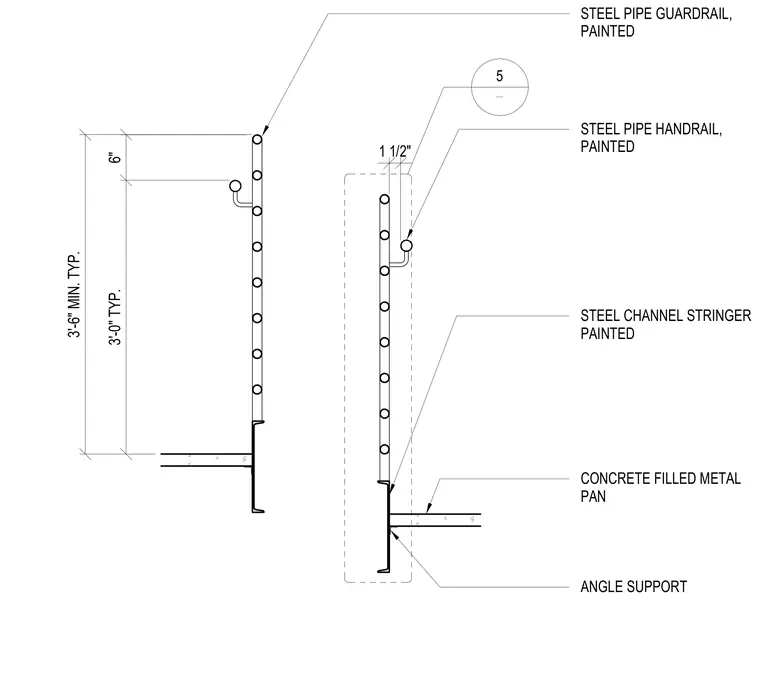

A painted steel pipe guardrail stands at a minimum height of three feet six inches typical above the concrete-filled metal pan stair tread. A painted steel pipe handrail projects one and one-half inches from the guardrail assembly at a height of three feet typical above the nosing. The guardrail posts connect to a painted steel channel stringer supported by angle brackets.
3'-6" MIN. TYP. 1 1/2" 3'-0" TYP. 6" 5 - STEEL PIPE GUARDRAIL, PAINTED STEEL PIPE HANDRAIL, PAINTED STEEL CHANNEL STRINGER PAINTED CONCRETE FILLED METAL PAN ANGLE SUPPORT
