Architectural · A-J3VBY

Secondary Roof Barge

Materials

Aluminum Cold-formed Steel Glass / Glazing Membrane / Roofing Metal (misc.)Timber / Wood

Elements

Curtain Walls Facades / Cladding Parapets Roof / Floor Openings Roofs Walls Waterproofing / Flashing Windows

About this detail

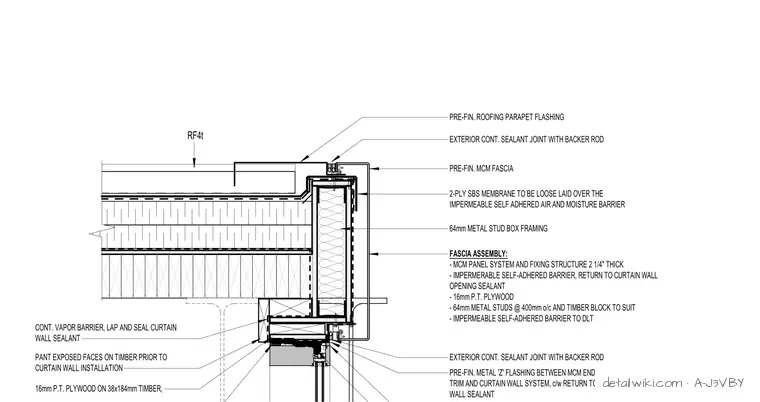

A secondary roof barge and parapet assembly integrates metal composite material fascia panels with cold-formed steel stud box framing. The roof incorporates a two-ply SBS membrane loose-laid over an impermeable self-adhered air and moisture barrier above sixteen-millimeter pressure-treated plywood and thirty-eight by one-hundred-eighty-four-millimeter timber blocking. The fascia assembly consists of a two-and-a-quarter-inch thick metal composite material panel system with fixing structure, an impermeable self-adhered barrier returning to the curtain wall opening sealant, sixteen-millimeter pressure-treated plywood, sixty-four-millimeter metal studs spaced at four hundred millimeters on center, and timber blocking to suit. Prefinished roofing parapet flashing ties into exterior continuous sealant joints with backer rods. A prefinished metal Z-flashing connects the metal composite material end installation trim and the curtain wall system with a return sealant. Exposed timber faces are painted prior to curtain wall installation, and a continuous vapor barrier is lapped and sealed with curtain wall sealant.
