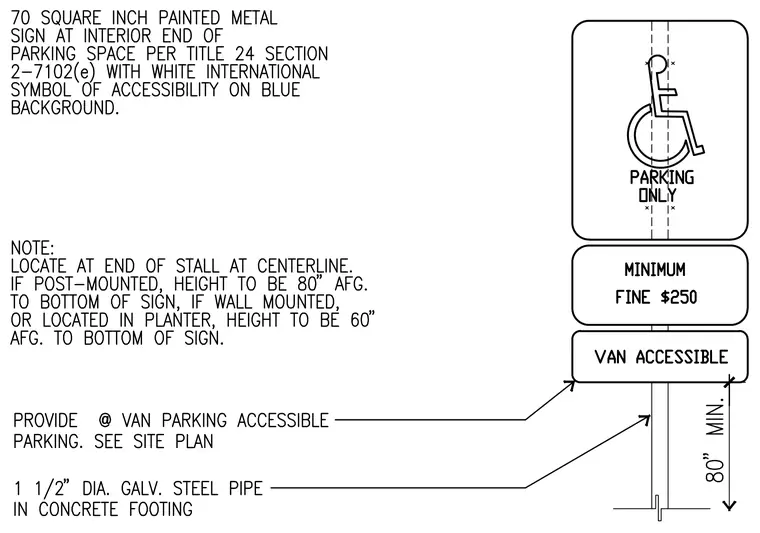

An accessible parking stall sign assembly features a 70 square inch painted metal sign with the white international symbol of accessibility on a blue background at the interior end of the parking space per Title 24 Section 2-7102(e), mounted on a 1 1/2 inch diameter galvanized steel pipe in a concrete footing. Additional plates include a minimum fine $250 plaque and a van accessible panel positioned below the main sign. The sign is located at the end of the stall at the centerline, with a height of 80 inches above finished grade to the bottom of the sign when post-mounted.
