Cold-formed steel stud intersections are framed with typical steel studs meeting bottom tracks at right angles. The intersecting members are secured with number 10 sheet metal screws on each side of every stud. Additional number 10 sheet metal screws are spaced at twenty-four inches on center from stud to stud. Fasteners are detailed per sheet reference five on A0.21 with maximum six-inch spacings at the bottom track.

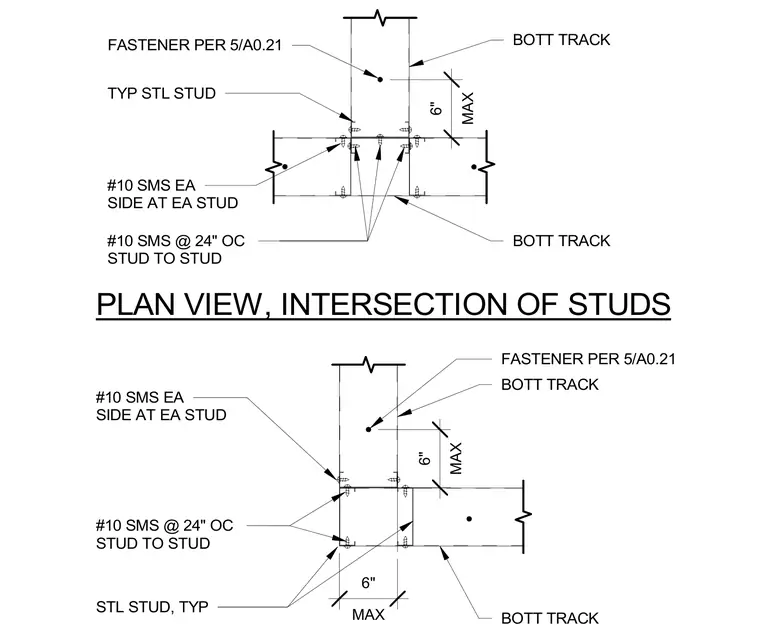

MAX 6" FASTENER PER 5/A0.21 TYP STL STUD #10 SMS EA SIDE AT EA STUD #10 SMS @ 24" OC STUD TO STUD BOTT TRACK BOTT TRACK PLAN VIEW, INTERSECTION OF STUDS MAX 6" BOTT TRACK BOTT TRACK MAX 6" FASTENER PER 5/A0.21 #10 SMS EA SIDE AT EA STUD #10 SMS @ 24" OC STUD TO STUD STL STUD, TYP
