Architectural · A-J3G35

Slab on Grade at Bio-Retention Wall Transition

Materials

Cold-formed Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Walls Curtain Walls Floors / Slabs Waterproofing / Flashing Insulation

About this detail

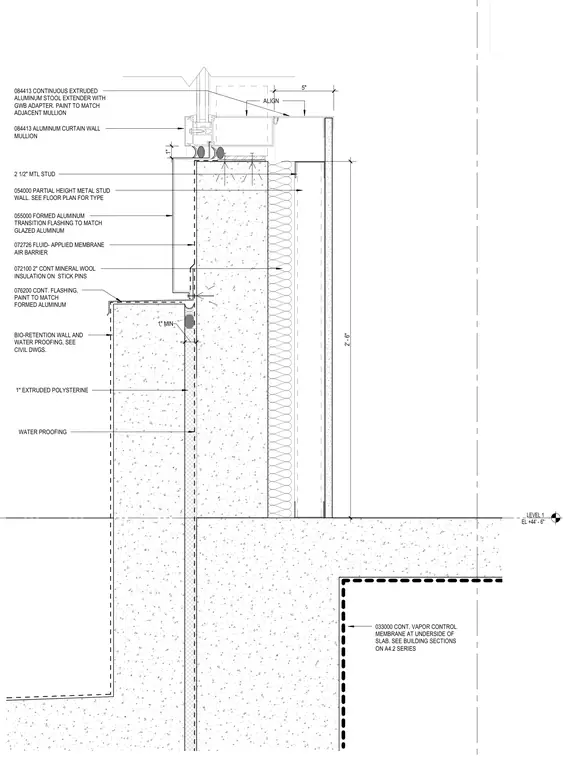

A slab on grade transitions adjacent to a bio-retention wall and concrete foundation. A continuous vapor control membrane is located beneath the slab, extending upwards against the waterproofed concrete wall face. A partial-height two-and-a-half-inch metal stud wall supports two inches of continuous mineral wool insulation held on stick pins, backed by a fluid-applied membrane air barrier. Formed aluminum transition flashing matches the glazed aluminum curtain wall mullion above, which interfaces with a continuous extruded aluminum stool extender and gypsum wallboard adapter. Below, continuous flashing ties into the waterproofing system atop the bio-retention wall, which features one-inch extruded polystyrene and waterproofing specified per civil drawings.
