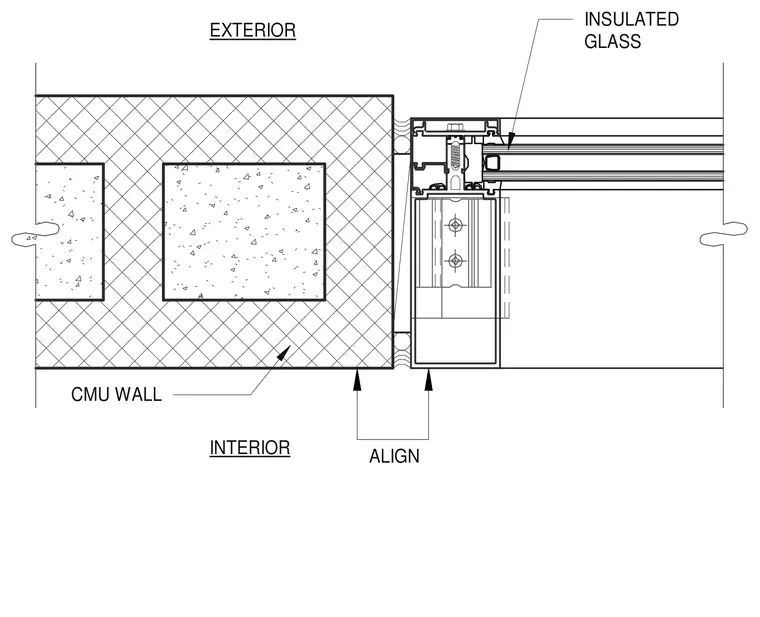

An aluminum storefront window frame connects directly to the jamb of a concrete masonry unit wall. The window framing assembly holds insulated glass and aligns flush with the interior face of the masonry wall. Joint sealant is applied at the exterior and interior perimeter between the aluminum frame and the CMU jamb.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
