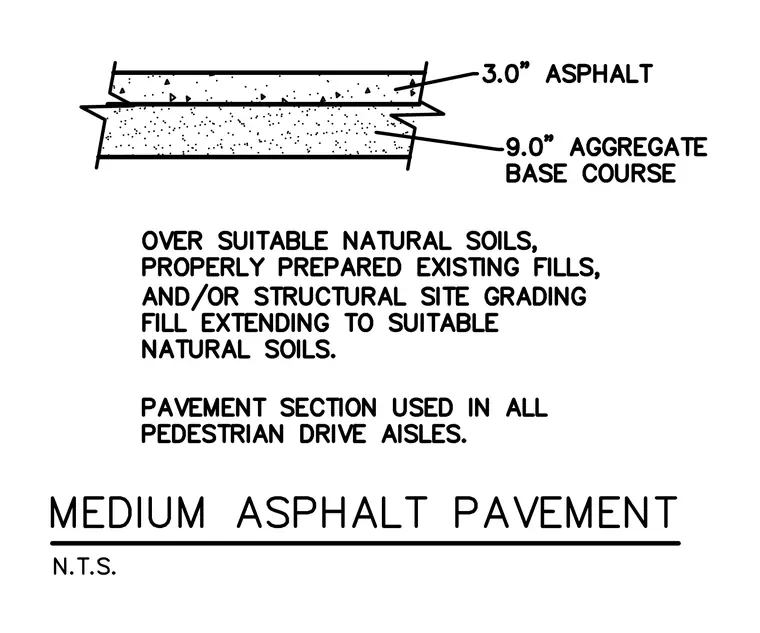

This pavement section comprises three point zero inches of asphalt laid over a nine point zero inch aggregate base course. The assembly rests on suitable natural soils, properly prepared existing fills, and or structural site grading fill extending to suitable natural soils. This pavement section is used in all pedestrian drive aisles.
