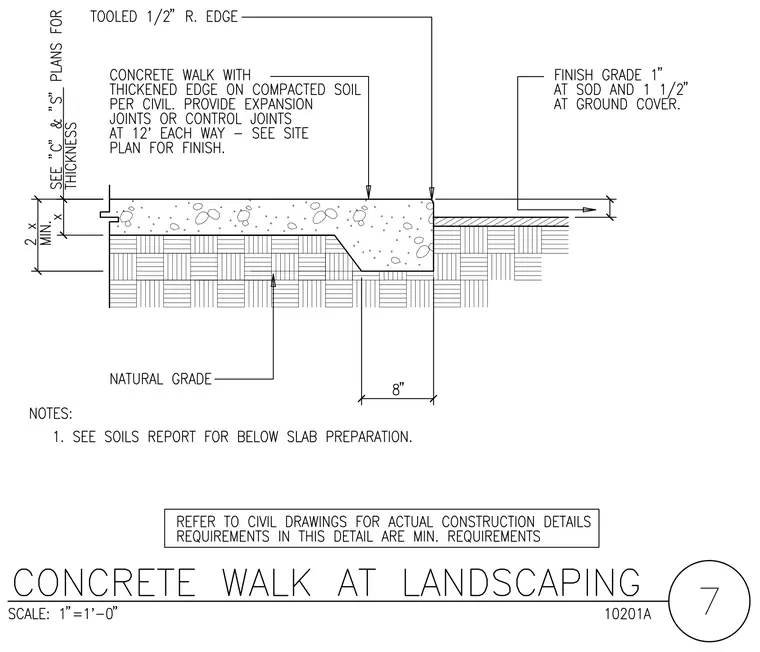

A concrete walk with a thickened edge bears on compacted soil over natural grade, featuring a tooled half-inch radius edge at the transition. Expansion joints or control joints are spaced at twelve feet each way per the site plan for finish. The edge incorporates a vertical dimensioning requirement where thickness equals two times x minimum, with the thickened portion extending eight inches wide. Finish grade is set one inch at sod and one and a half inches at ground cover relative to the walk. Below-slab preparation must comply with the soils report, and civil drawings govern actual construction details.
