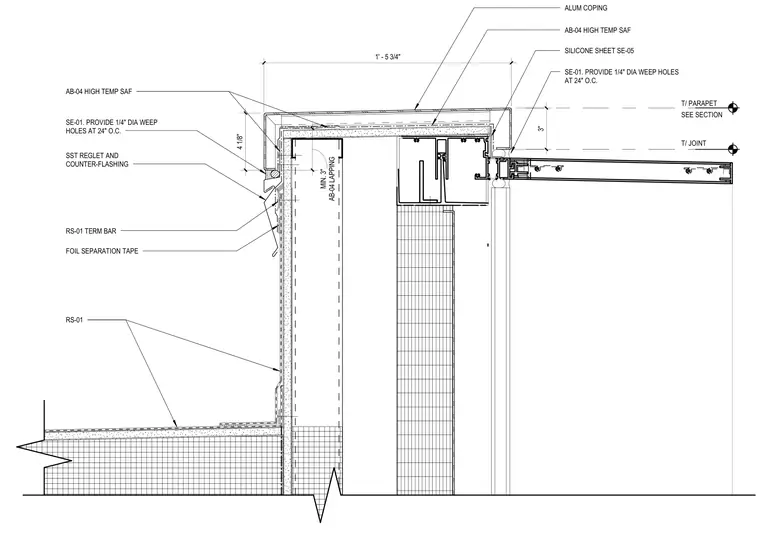

An aluminum coping cap covers the top of the parapet wall over high-temperature self-adhering flashing and a silicone sheet membrane. Quarter-inch diameter weep holes are spaced at twenty-four inches on center within the coping assembly. A stainless steel reglet and counter-flashing secure the exterior membrane with a termination bar over foil separation tape, maintaining a minimum three-inch lap.
T/ PARAPET T/ JOINT RS-01 AB-04 HIGH TEMP SAF SILICONE SHEET SE-05 SE-01. PROVIDE 1/4" DIA WEEP HOLES AT 24" O.C. AB-04 HIGH TEMP SAF ALUM COPING SEE SECTION 1' - 5 3/4" SE-01. PROVIDE 1/4" DIA WEEP HOLES AT 24" O.C. SST REGLET AND COUNTER-FLASHING AB-04 LAPPING MIN. 3" 4 1/8" 3" FOIL SEPARATION TAPE RS-01 TERM BAR
