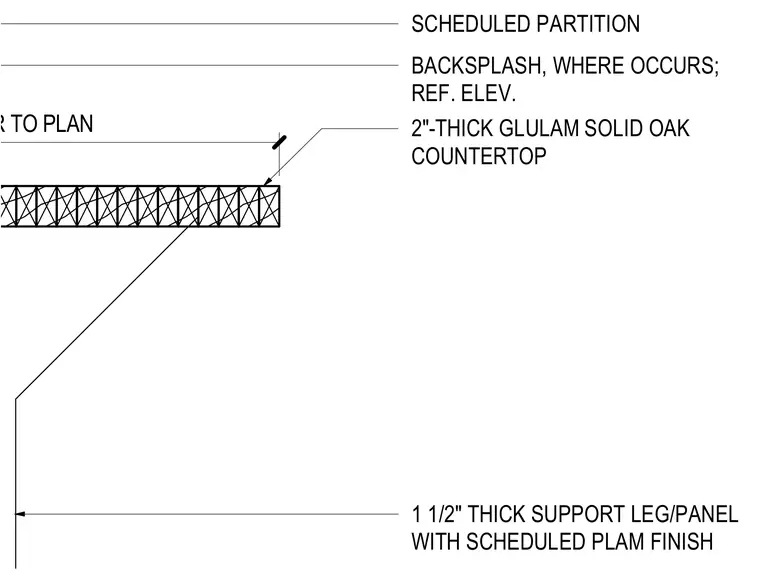

A two-inch thick glulam solid oak countertop rests against a scheduled partition, with a backsplash installed where required per elevations and plans. A one-and-one-half-inch thick support leg and panel finished with plastic laminate provides vertical support at the counter edge.
BACKSPLASH, WHERE OCCURS; REF. ELEV. SCHEDULED PARTITION 2"-THICK GLULAM SOLID OAK COUNTERTOP REFER TO PLAN 1 1/2" THICK SUPPORT LEG/PANEL WITH SCHEDULED PLAM FINISH
