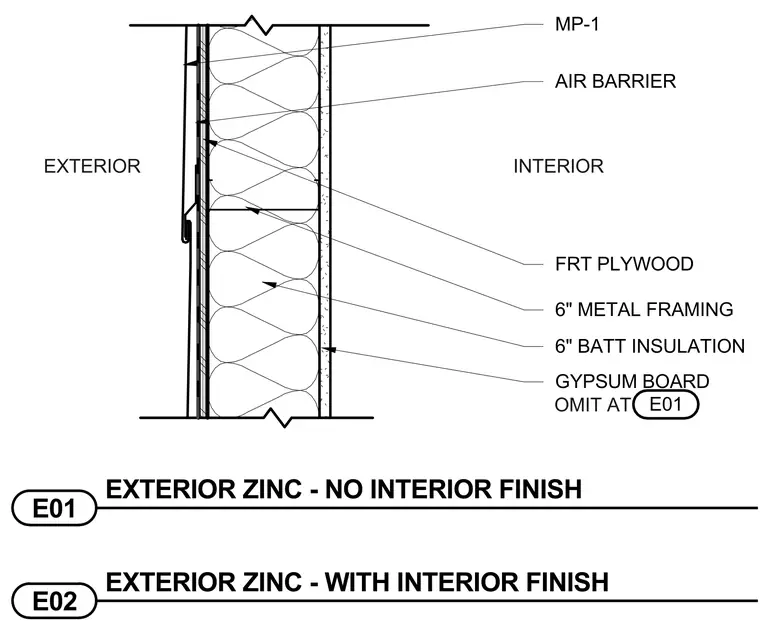

This exterior wall assembly features MP-1 zinc exterior panels installed over an air barrier and fire-retardant treated plywood sheathing. The core consists of six-inch metal framing filled with six-inch batt insulation. The interior side is finished with gypsum board, which is omitted at detail E01.
OMIT AT EXTERIOR INTERIOR E01 EXTERIOR ZINC - NO INTERIOR FINISH E02 EXTERIOR ZINC - WITH INTERIOR FINISH E01 MP-1 AIR BARRIER FRT PLYWOOD 6" METAL FRAMING GYPSUM BOARD 6" BATT INSULATION
