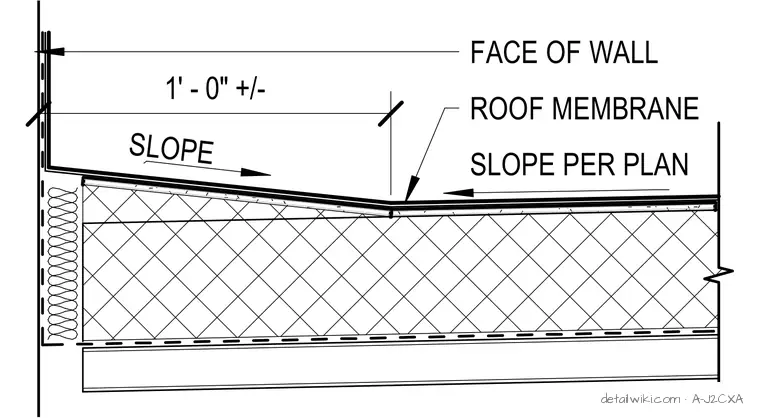

The roof membrane extends up the face of the wall to provide a waterproof transition. A tapered insulation cricket is installed to direct drainage away from the wall, with the slope defined per plan. The assembly maintains a one-foot plus or minus dimension from the face of the wall to the transition point of the slope.
Text on the drawing
SLOPE FACE OF WALL ROOF MEMBRANE SLOPE PER PLAN SECTION A-A 1' - 0" +/-
