Adjacent concrete tilt-up wall panels form a three-quarter-inch vertical joint spanning from the footing to the top of the panel. A backer rod is installed at each exterior and interior face behind continuous sealant across the joint.

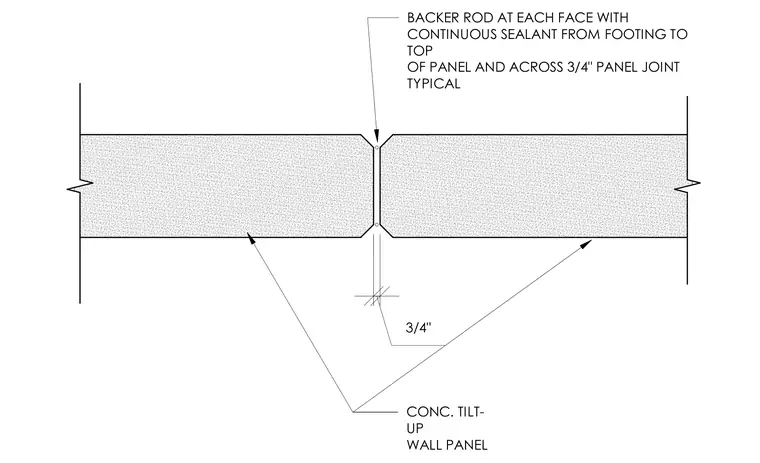

BACKER ROD AT EACH FACE WITH CONTINUOUS SEALANT FROM FOOTING TO TOP OF PANEL AND ACROSS 3/4" PANEL JOINT TYPICAL CONC. TILT- UP WALL PANEL 3/4"
