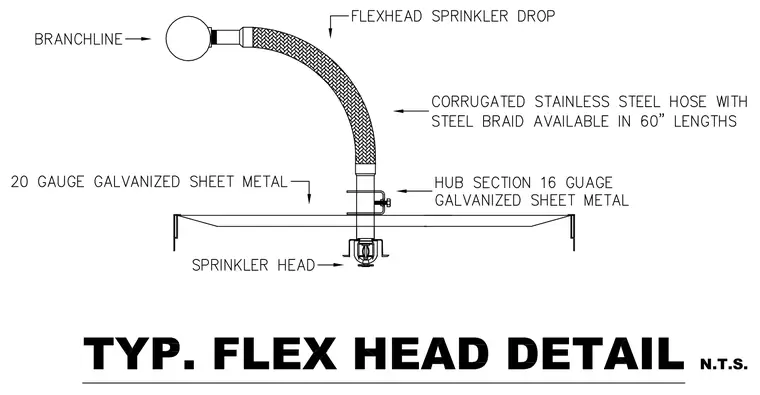

A flexible sprinkler head drop connects to the main branch line using a corrugated stainless steel hose with a steel braid available in sixty-inch lengths. The drop assembly passes through twenty gauge galvanized sheet metal and is secured with a sixteen gauge galvanized sheet metal hub section. A sprinkler head terminates the lower end of the drop assembly.
