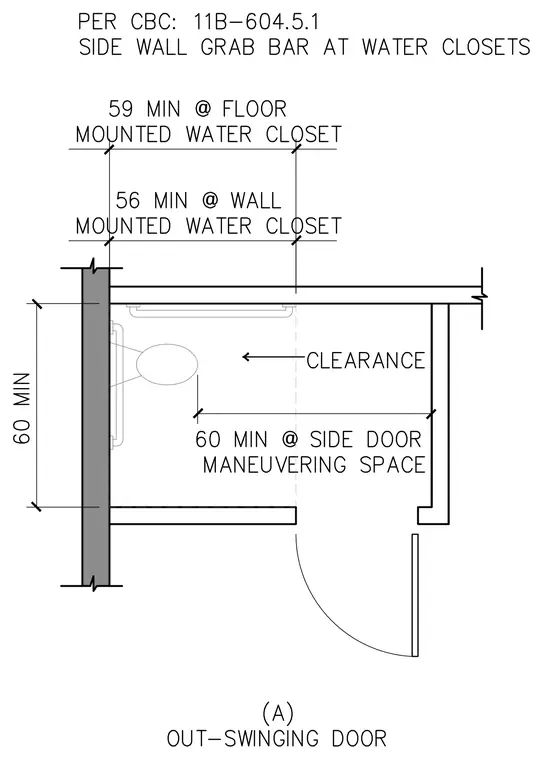

Accessibility plan layout detailing grab bar placement, wall dimensions, and clearance requirements at an accessible water closet. The side wall grab bar is installed alongside the water closet with specific minimum spacing requirements of fifty-nine inches minimum at floor mounted water closets and fifty-six inches minimum at wall mounted water closets. A minimum sixty-inch clearance is provided from the rear wall, alongside a sixty-inch minimum side door maneuvering space for out-swinging doors.
