An aluminum framed storefront mullion is set at elevation 10 feet 0 inches separating the exterior and the vestibule side. An automatic door operator is mounted on the vestibule side where required by the opening. The door as scheduled connects below the head framing, and a glazing panel sits above.

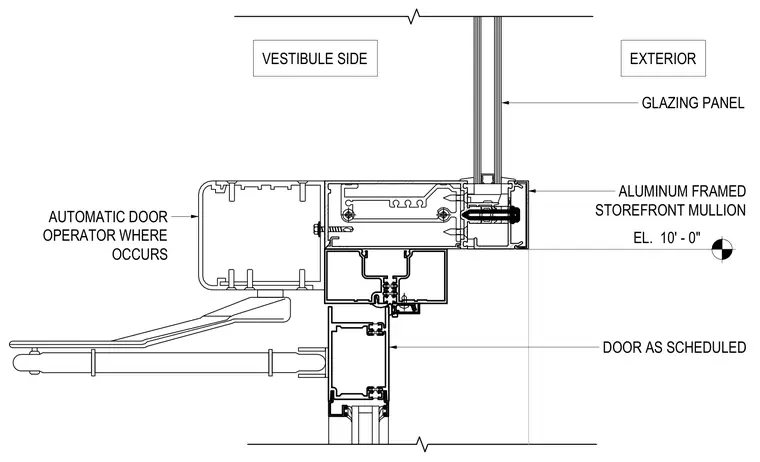

ALUMINUM FRAMED STOREFRONT MULLION EL. 10' - 0" EXTERIOR VESTIBULE SIDE AUTOMATIC DOOR OPERATOR WHERE OCCURS DOOR AS SCHEDULED GLAZING PANEL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
