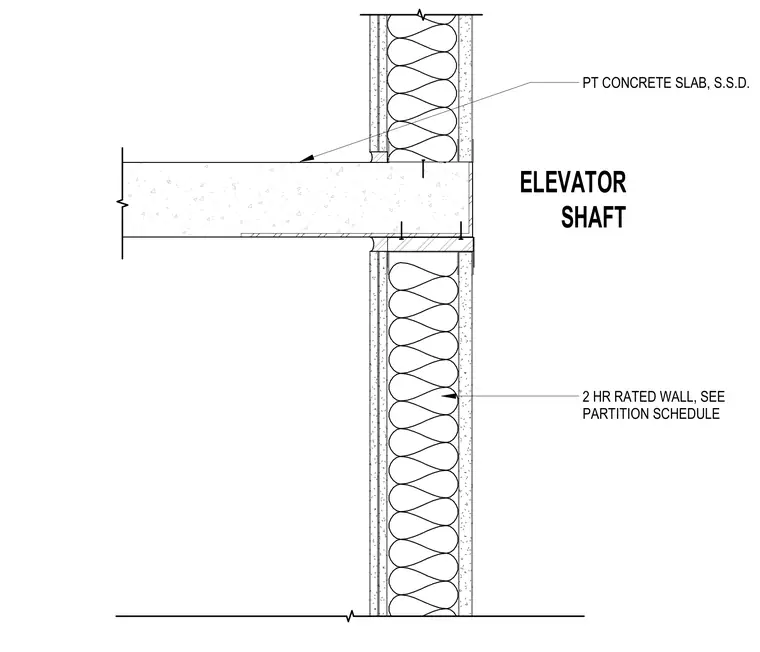

A two-hour fire-rated elevator shaft wall partition connects to a post-tensioned concrete slab. The wall assembly is detailed per the partition schedule, interfacing with the concrete slab edge at the elevator shaft.
2 HR RATED WALL, SEE PARTITION SCHEDULE PT CONCRETE SLAB, S.S.D. ELEVATOR SHAFT
