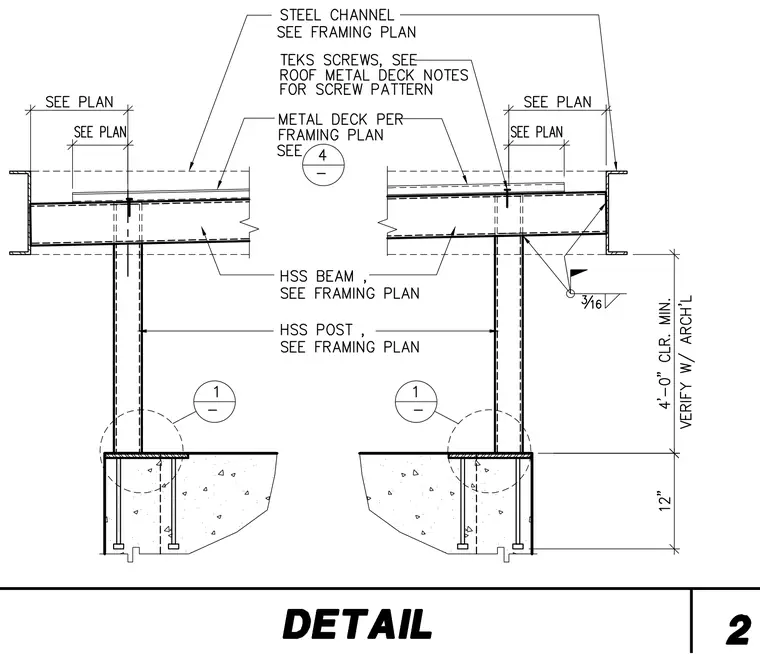

Hollow structural section posts connect to concrete foundations using base plates and anchor rods. Hollow structural section beams frame into the posts and support a metal deck roof system with self-drilling screws. Steel channels flank the perimeter per the framing plan. A three-sixteenths-inch fillet weld secures the beam connections, maintaining a four-foot minimum clearance verified with the architect.
