Architectural · A-HZN73

Trash Enclosure Gate Post Attachment at Concrete Wall

Materials

Concrete Steel Metal (misc.)

Elements

Columns Walls Doors Anchors / Embeds Reinforcing

Connections

HSS Connection Embed Plate

About this detail

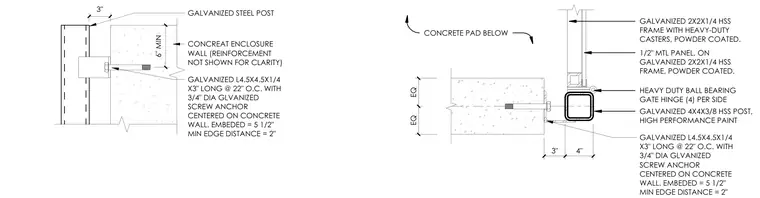

A galvanized 4x4x3/8 hollow structural section steel post connects to a concrete enclosure wall using a galvanized 4-1/2x4-1/2x1/4 angle, three inches long, spaced at twenty-two inches on center. The angle secures to the wall with a three-quarter-inch diameter galvanized screw anchor centered on the concrete, requiring a five-and-a-half-inch minimum embedment and a two-inch minimum edge distance. A heavy-duty ball bearing gate hinge mounts four per side onto the post, supporting a gate frame constructed of galvanized 2x2x1/4 hollow structural section framing with powder-coated half-inch metal panels and heavy-duty casters.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
