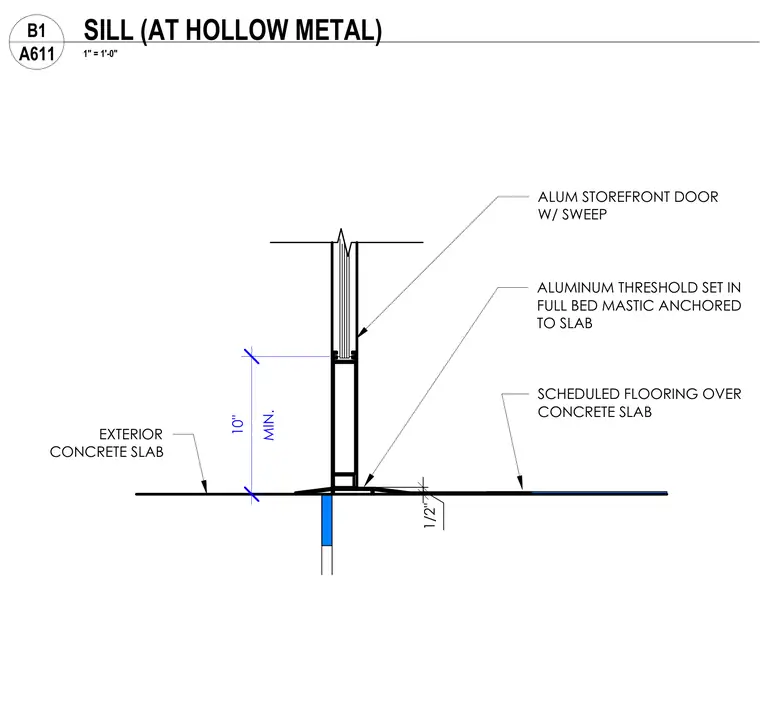

An aluminum storefront door with a bottom sweep bears over an exterior concrete slab with a minimum ten-inch clearance. An aluminum threshold sets in a full bed of mastic and anchors directly to the concrete slab. Scheduled flooring finishes over the interior concrete slab adjacent to the threshold.
1/2" EXTERIOR CONCRETE SLAB SCHEDULED FLOORING OVER CONCRETE SLAB ALUMINUM THRESHOLD SET IN FULL BED MASTIC ANCHORED TO SLAB ALUM STOREFRONT DOOR W/ SWEEP MIN. 10" 1" = 1'-0" A611 B1 SILL (AT HOLLOW METAL)
