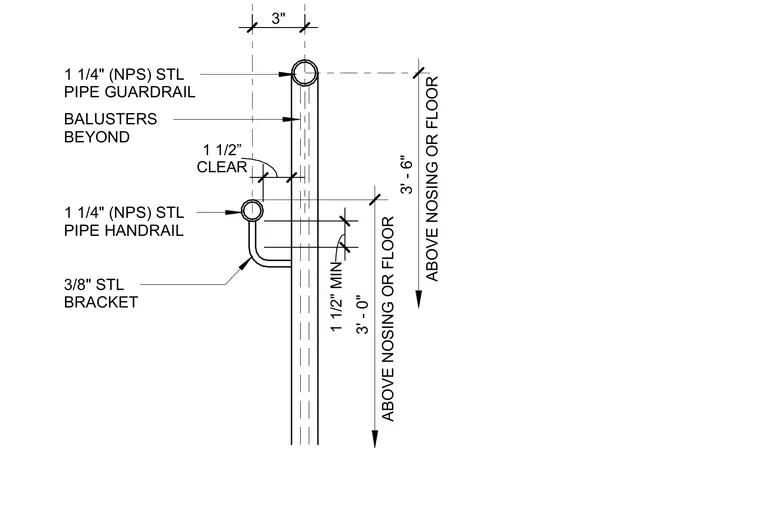

A steel pipe handrail and guardrail assembly. A 1 1/4" nominal pipe size steel pipe handrail is mounted to balusters via a 3/8" steel bracket, providing a 1 1/2" minimum clearance to the vertical baluster beyond. The handrail centerline is positioned 3'-0" above the stair nosing or floor, while the top of the 1 1/4" nominal pipe size steel pipe guardrail is positioned 3'-6" above the nosing or floor.
CLEAR 1 1/2” 3" 3/8" STL BRACKET BALUSTERS BEYOND 3' - 0" ABOVE NOSING OR FLOOR ABOVE NOSING OR FLOOR 3' - 6" 1 1/4" (NPS) STL PIPE HANDRAIL 1 1/4" (NPS) STL PIPE GUARDRAIL 1 1/2" MIN
