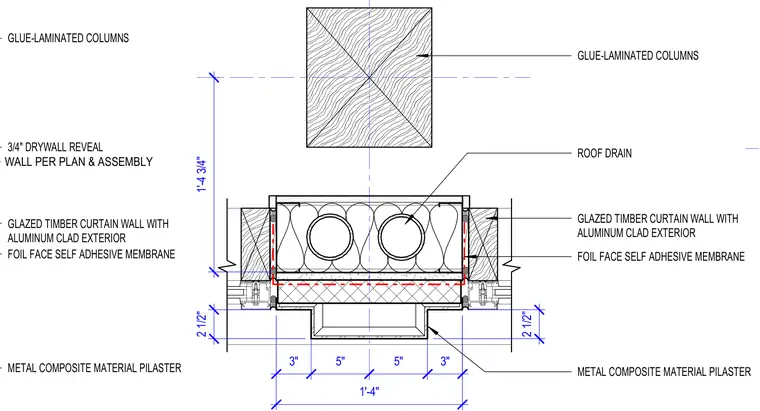

This plan detail shows a roof drain integrated within a metal composite material pilaster with an aluminum-clad exterior. The assembly coordinates with a glazed timber curtain wall supported by glue-laminated columns. A foil face self-adhesive membrane provides weatherproofing around the structural and drainage elements. Interior finishes include a three-quarter-inch drywall reveal spaced per plan and assembly.
GLAZED TIMBER CURTAIN WALL WITH ALUMINUM CLAD EXTERIOR METAL COMPOSITE MATERIAL PILASTER WALL PER PLAN & ASSEMBLY GLUE-LAMINATED COLUMNS 3/4" DRYWALL REVEAL FOIL FACE SELF ADHESIVE MEMBRANE 1'-4 3/4" 3" 5" 5" 3" 1'-4" 2 1/2" 2 1/2" GLAZED TIMBER CURTAIN WALL WITH ALUMINUM CLAD EXTERIOR METAL COMPOSITE MATERIAL PILASTER GLUE-LAMINATED COLUMNS FOIL FACE SELF ADHESIVE MEMBRANE ROOF DRAIN
