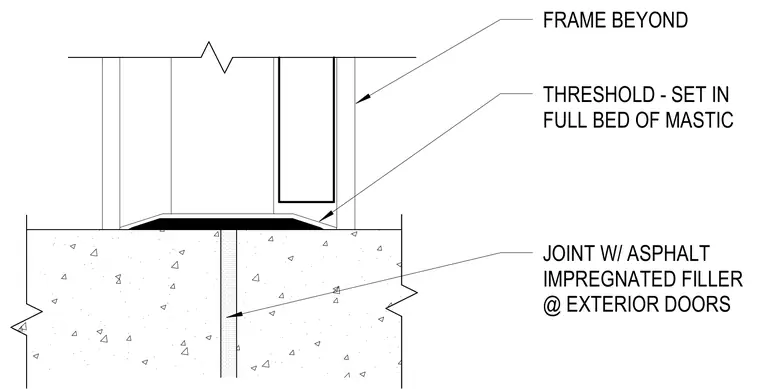

An exterior door threshold is set in a full bed of mastic above a joint fitted with asphalt-impregnated filler. The frame is positioned beyond the threshold assembly.
FRAME BEYOND THRESHOLD - SET IN FULL BED OF MASTIC JOINT W/ ASPHALT IMPREGNATED FILLER @ EXTERIOR DOORS
