Architectural · A-HZAYW

Detail

Units: imperial
Discipline: Architectural

Materials

Steel

Elements

Beams Decks

Text on the drawing

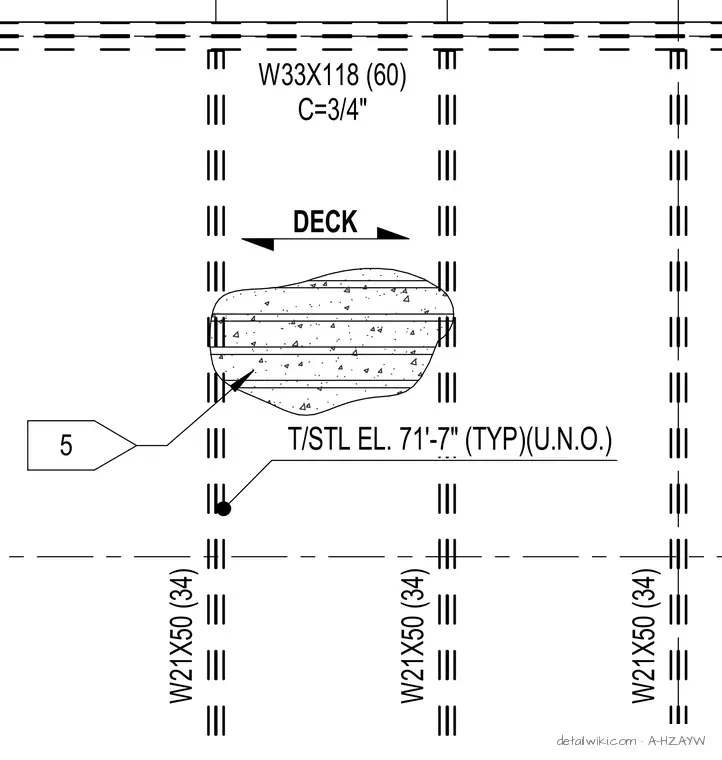

W21X50 (34) W21X50 (34) W21X50 (34) W33X118 (60) C=3/4" DECK T/STL EL. 71'-7" (TYP)(U.N.O.) 5
