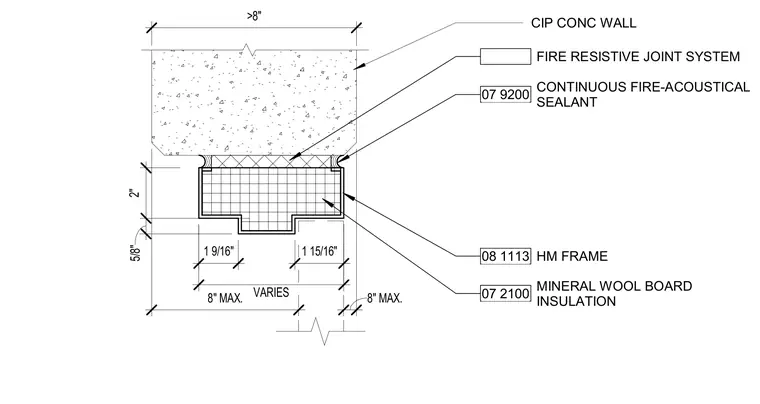

A hollow metal frame is set within a cast-in-place concrete wall with a fire-resistive joint system at the frame head. Mineral wool board insulation fills the interior of the frame. Continuous fire-acoustical sealant is applied at the joints between the frame and the concrete wall on both sides. Dimensional callouts indicate specific clearances and maximum spacings for the installation.
VARIES 1 9/16" 1 15/16" 5/8" 2" >8" 08 1113 HM FRAME CIP CONC WALL 07 9200 CONTINUOUS FIRE-ACOUSTICAL SEALANT 07 2100 MINERAL WOOL BOARD INSULATION 8" MAX. 8" MAX. FIRE RESISTIVE JOINT SYSTEM
