Architectural · A-HZ7BK

Jamb at Sectional Door

Materials

Steel

Elements

Walls Doors Anchors / Embeds Connections / Plates Roof / Floor Openings

Connections

Bolted Connection

About this detail

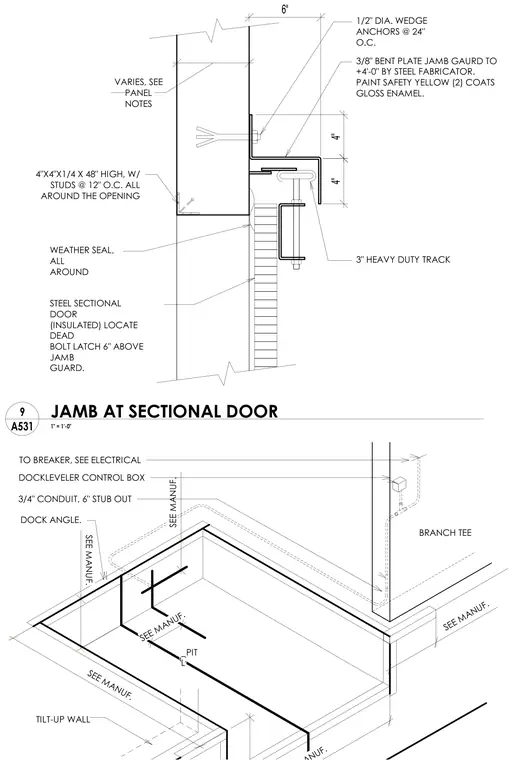

Jamb construction for an insulated steel sectional door mounted against a tilt-up concrete wall. A three-eighths-inch bent plate jamb guard extends to plus four feet zero inches, anchored with one-half-inch diameter wedge anchors at twenty-four inches on center and finished with two coats of safety yellow gloss enamel. The assembly incorporates a three-inch heavy-duty steel door track, perimeter weather sealing, and a dead bolt latch positioned six inches above the jamb guard. An electrical dock leveler control box connects via three-quarter-inch conduit stubbed out to the breaker. An embedded structural steel angle frames the dock pit opening per manufacturer requirements.
