Low Counter and Transaction Top Section at Reception Desk

Materials

Steel

Elements

Columns Bracing Millwork / Casework Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Bracing Connection Welded Connection

About this detail

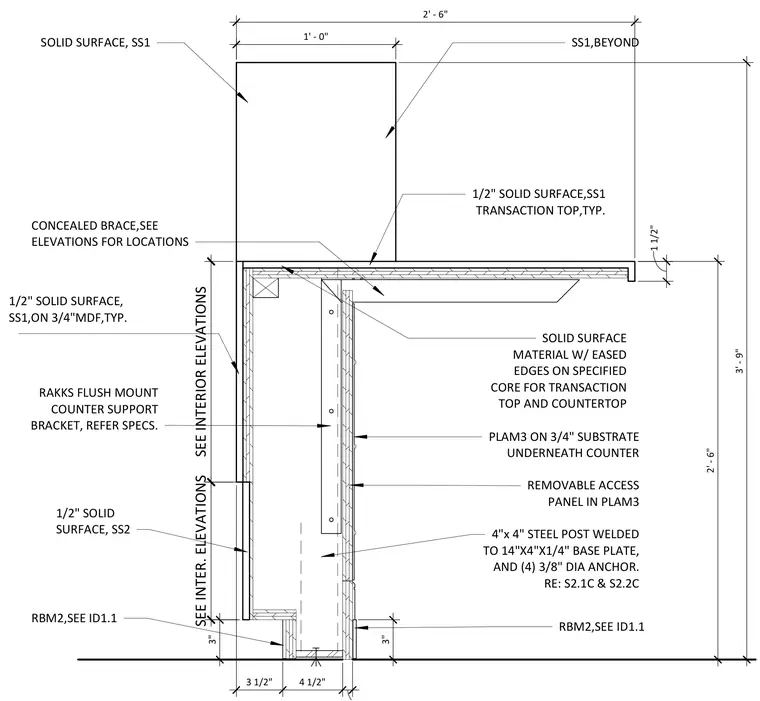

A reception desk counter assembly features a transaction top and lower counter surface constructed with solid surface material over medium-density fiberboard and plywood substrates. The countertop is supported by flush mount counter support brackets and a four-by-four-inch steel post welded to a fourteen-by-four-inch by one-quarter-inch base plate anchored with four three-eighths-inch diameter anchors. The front face incorporates a plastic laminate finish on a substrate, including a removable access panel and a base trim detail. Concealed bracing is provided per interior elevations for structural stability. All solid surface materials feature eased edges on the specified core.
