A grout-filled depression is anchored to a structural steel beam or hollow structural section using two 16-gauge Z-clips measuring 2 inches by 2 inches by 2 inches spaced at two feet on center. Two pads are positioned at two feet on center. Fillet welds of one-eighth inch with one-inch length are applied at an eight-inch maximum spacing to secure the assembly. Offset beam and hollow structural section configurations accommodate up to an eight-inch maximum offset dimension.

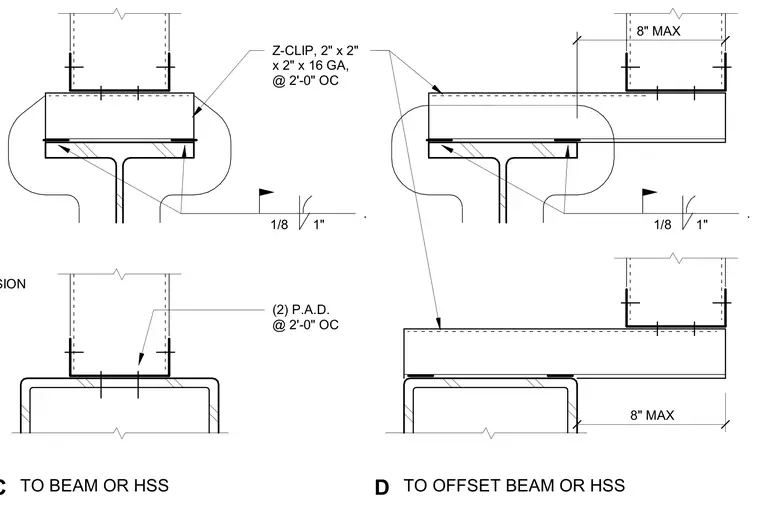

GROUT FILLED DEPRESSION (2) P.A.D. @ 2'-0" OC Z-CLIP, 2" x 2" x 2" x 16 GA, @ 2'-0" OC 1/8 1" . 1/8 1" . 8" MAX 8" MAX TO BEAM OR HSS C TO OFFSET BEAM OR HSS D
