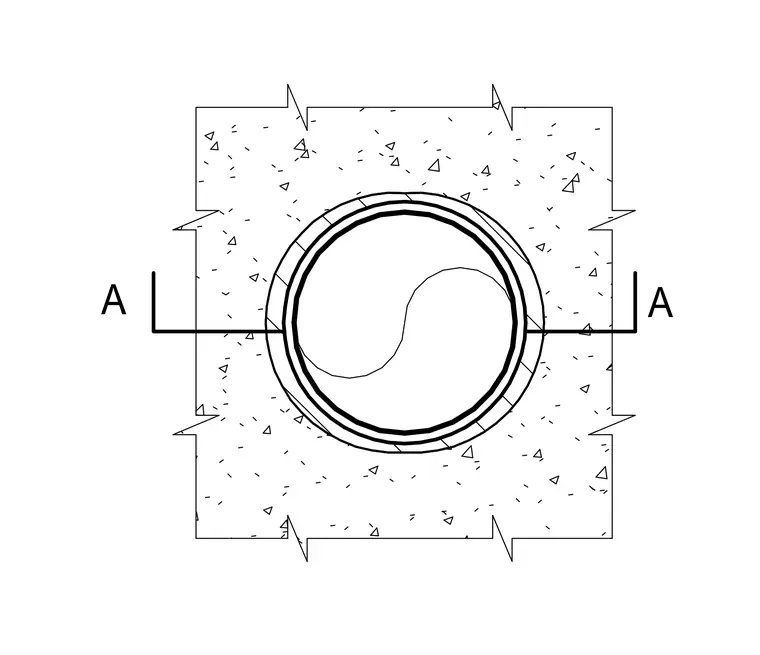

A circular pipe passes through a concrete floor slab with a surrounding sleeve and section cut markers designating view A-A. The surrounding concrete slab features standard break lines indicating a cropped detail view. The pipe core is centered within the sleeved opening.
