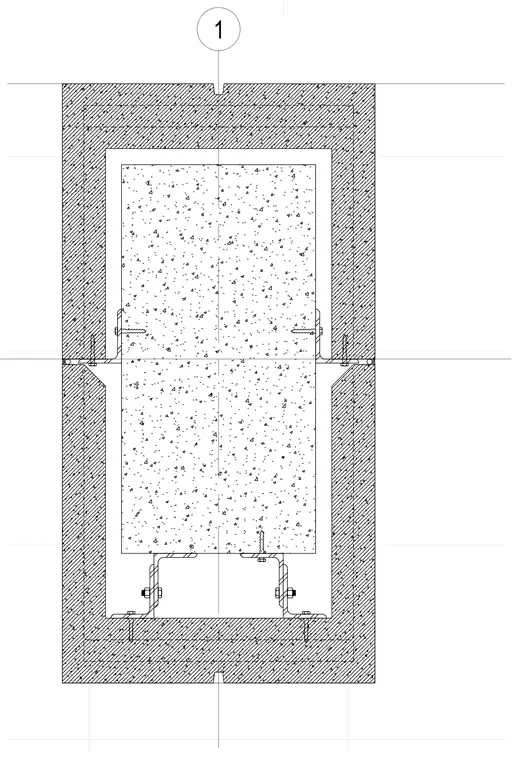

An exterior precast concrete panel joint assembly features dual concrete panels lined with continuous interior insulation and an air gap. The horizontal joint is sealed with joint sealant and backed by flashing connected with mechanical fasteners. Interior framing consists of steel channel sections anchored directly into the precast concrete core. Bolted clip angles tie the internal metal framing components together across the vertical joint configuration.
