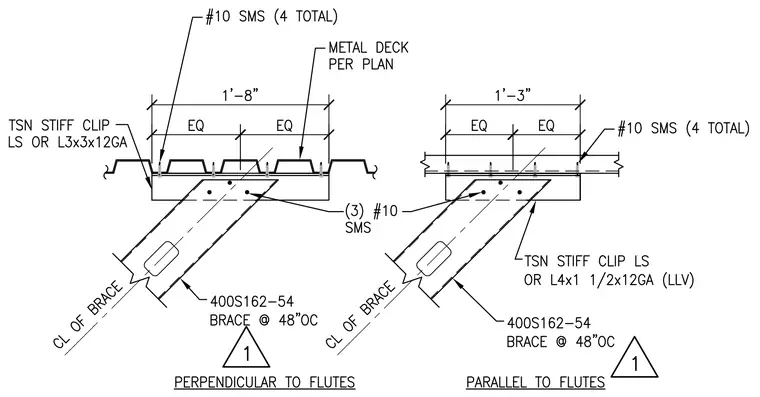

A 400S162-54 cold-formed steel brace spaced at forty-eight inches on center connects to a metal deck per plan using a TSN Stiff Clip LS or an L3x3x12 gauge angle for perpendicular flutes, secured with four total number ten sheet metal screws. For parallel flutes, the same brace connects using a TSN Stiff Clip LS or an L4x1-1/2x12 gauge angle with long leg vertical, secured with four total number ten sheet metal screws into the deck and three number ten sheet metal screws at the clip. The connection transfers lateral loads from the brace into the roof or floor diaphragm. Dimensions detail equal spacing across the width of one foot eight inches for perpendicular flutes and one foot three inches for parallel flutes.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
