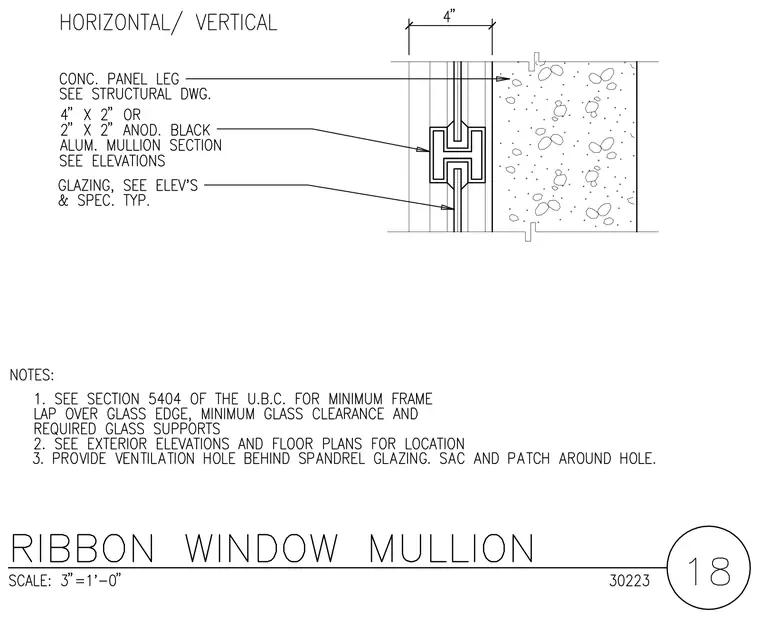

An anodized black aluminum mullion, measuring four inches by two inches or two inches by two inches, is positioned alongside a concrete panel leg with a four-inch dimension callout. Glazing is integrated into the system per elevations and specifications. Ventilation holes are provided behind spandrel glazing with sack and patch around the hole. Frame lap over glass edge, minimum glass clearance, and required glass supports comply with section 5404 of the Uniform Building Code.
