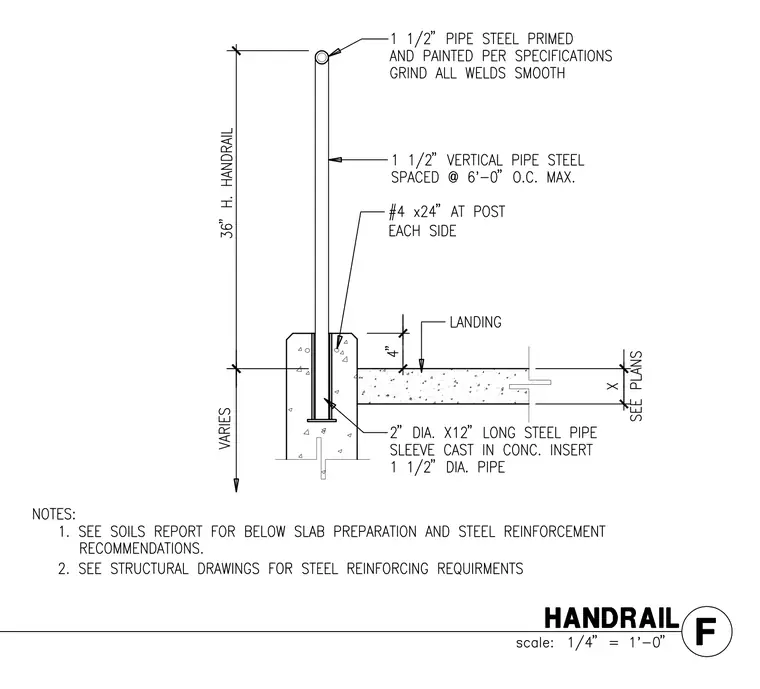

A 1 1/2-inch steel pipe handrail is primed, painted, and welded smooth, supported by vertical steel pipe posts spaced at a maximum of 6 feet on center. The post extends down into a 2-inch diameter by 12-inch long steel pipe sleeve cast directly into the concrete landing. Reinforcing consists of #4 bars at 24 inches on each side of the post. The top of the handrail sits 36 inches above the landing surface.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
