Architectural · A-HXPMM

Window Sill 2

Materials

Concrete Cold-formed Steel Timber / Wood Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Windows Storefronts Facades / Cladding Floors / Slabs Decks Insulation

About this detail

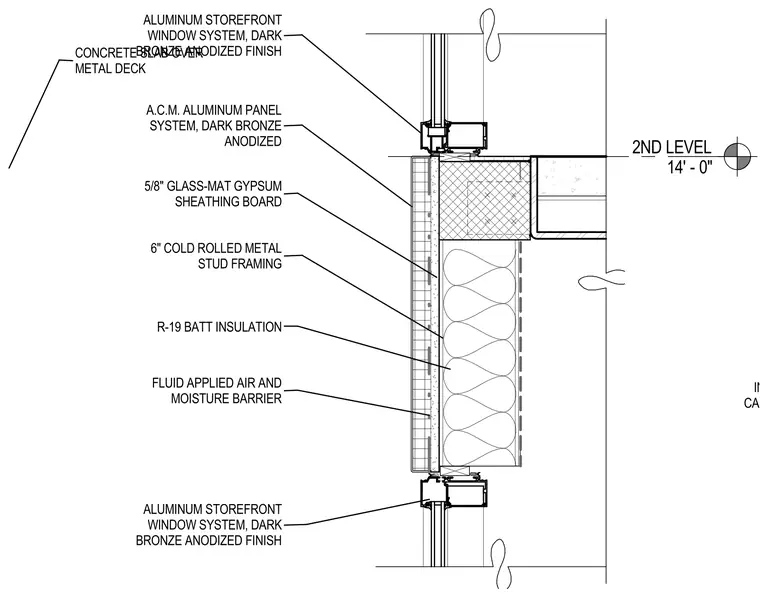

An aluminum storefront window system with a dark bronze anodized finish is installed at the second level, situated at 14'-0". The assembly is supported by a concrete slab over a metal deck adjacent to 6-inch cold-rolled metal stud framing. The exterior wall build-up includes a fluid-applied air and moisture barrier, 5/8-inch glass-mat gypsum sheathing board, R-19 batt insulation, and an ACM aluminum panel system with a dark bronze anodized finish. Insulation fills the full thickness of the cavity with 20 percent minimum compression.
