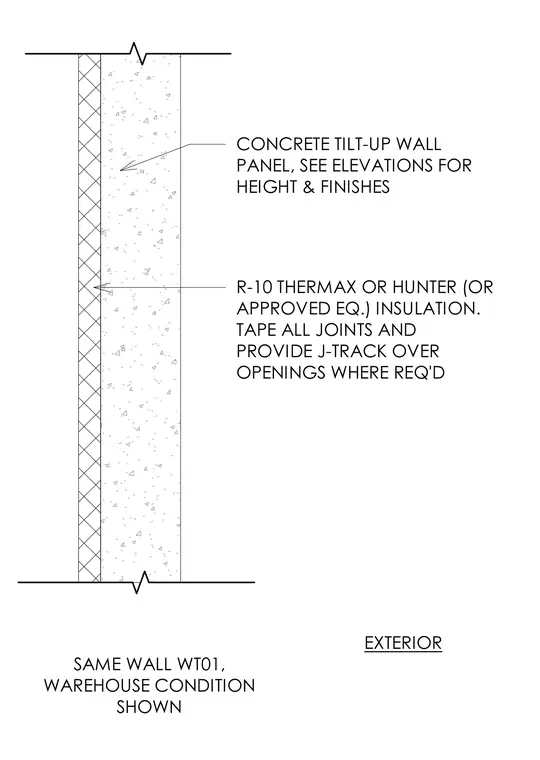

A concrete tilt-up wall panel receives continuous exterior insulation consisting of R-10 Thermax or Hunter insulation board. All insulation joints are taped, and J-track is provided over openings where required. Height and finishes are referenced to the building elevations for this warehouse condition wall type WT01.
CONCRETE TILT-UP WALL PANEL, SEE ELEVATIONS FOR HEIGHT & FINISHES EXTERIOR R-10 THERMAX OR HUNTER (OR APPROVED EQ.) INSULATION. TAPE ALL JOINTS AND PROVIDE J-TRACK OVER OPENINGS WHERE REQ'D SAME WALL WT01, WAREHOUSE CONDITION SHOWN
