A solid surface countertop with a self edge and one-eighth inch radius sits above a knee space requiring a twenty-seven inch minimum clearance. A half-inch thick privacy panel is secured top and bottom with a one-inch metal U-channel.

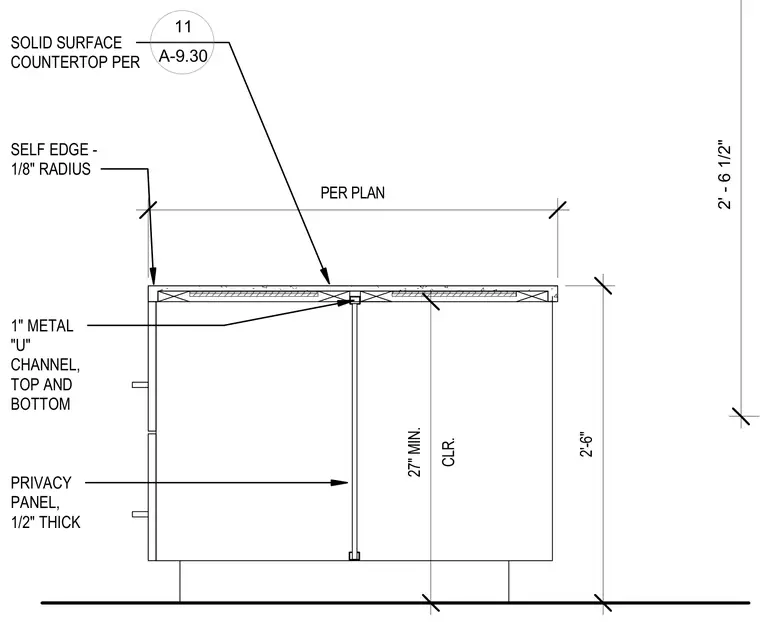

2' - 6 1/2" SOLID SURFACE COUNTERTOP PER SELF EDGE - 1/8" RADIUS 1" METAL "U" CHANNEL, TOP AND BOTTOM PRIVACY PANEL, 1/2" THICK 2'-6" PER PLAN CLR. 27" MIN. 11 A-9.30
