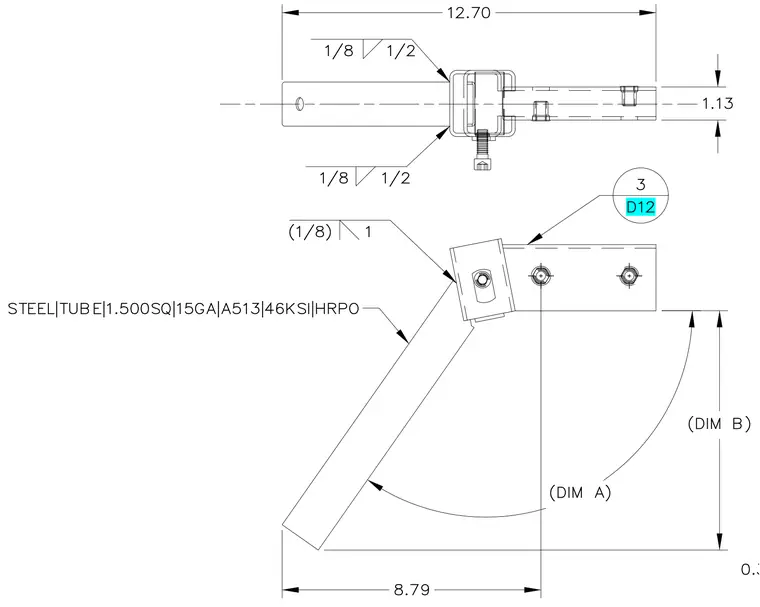

A 1.500-inch square steel tube with a 15-gauge wall thickness and A513 grade 46 ksi hot-rolled pickled and oiled finish connects to an angled mounting bracket. The joint is secured with one-eighth inch fillet welds measuring one-half to one inch in length. Fasteners and set screws secure the assembly components at specified dimensional offsets and angular clearances.
1.13 (DIM A) (DIM B) 0.38 (TYP) 12.70 (1/8) 1 1/8 1/2 1/8 1/2 STEEL|TUBE|1.500SQ|15GA|A513|46KSI|HRPO 3 D12 8.79 / i // N (+)
