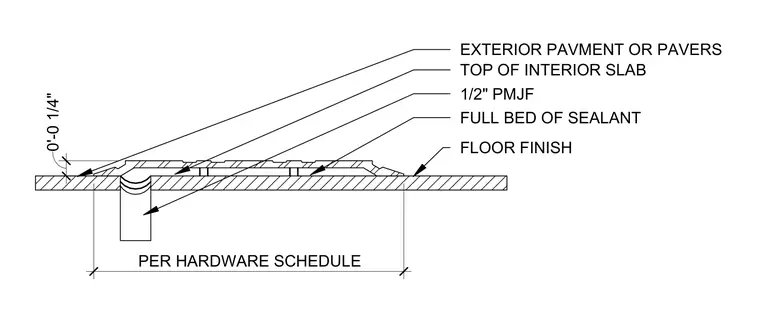

An exterior pavement or paver assembly meets the top of the interior slab with a vertical height difference of zero feet and one quarter inch. A half-inch pre-molded joint filler is installed between the transitions. The threshold hardware is bedded in a full bed of sealant over the floor finish. All fastening and hardware specifications are provided per the hardware schedule.
0'-0 1/4" PER HARDWARE SCHEDULE FULL BED OF SEALANT EXTERIOR PAVMENT OR PAVERS FLOOR FINISH 1/2" PMJF TOP OF INTERIOR SLAB
