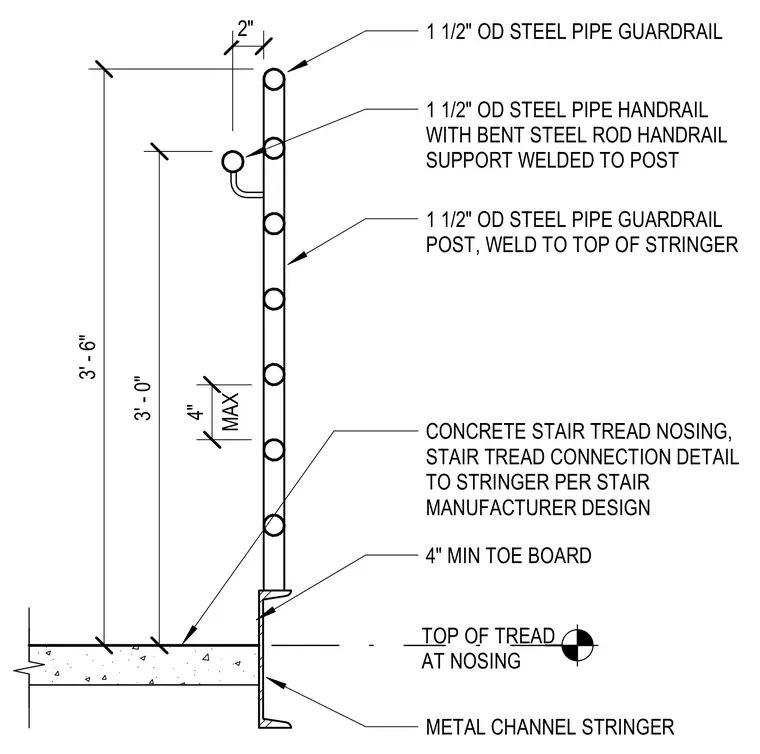

An egress stair guardrail and handrail assembly features a 1 1/2-inch outside diameter steel pipe guardrail and a matching handrail mounted on a bent steel rod support welded to the post. The 1 1/2-inch outside diameter steel pipe guardrail post is welded directly to the top of a metal channel stringer. A 4-inch minimum toe board sits above the concrete stair tread nosing, where the stair tread connection to the stringer is designed per the stair manufacturer. The guardrail maintains a 3-foot 6-inch height with a 2-inch offset to the handrail, while intermediate rails maintain a 4-inch maximum spacing.
1 1/2" OD STEEL PIPE GUARDRAIL 1 1/2" OD STEEL PIPE HANDRAIL WITH BENT STEEL ROD HANDRAIL SUPPORT WELDED TO POST CONCRETE STAIR TREAD NOSING, STAIR TREAD CONNECTION DETAIL TO STRINGER PER STAIR MANUFACTURER DESIGN METAL CHANNEL STRINGER TOP OF TREAD AT NOSING 1 1/2" OD STEEL PIPE GUARDRAIL POST, WELD TO TOP OF STRINGER 4" MIN TOE BOARD 3' - 0" 3' - 6" 2" MAX 4"
