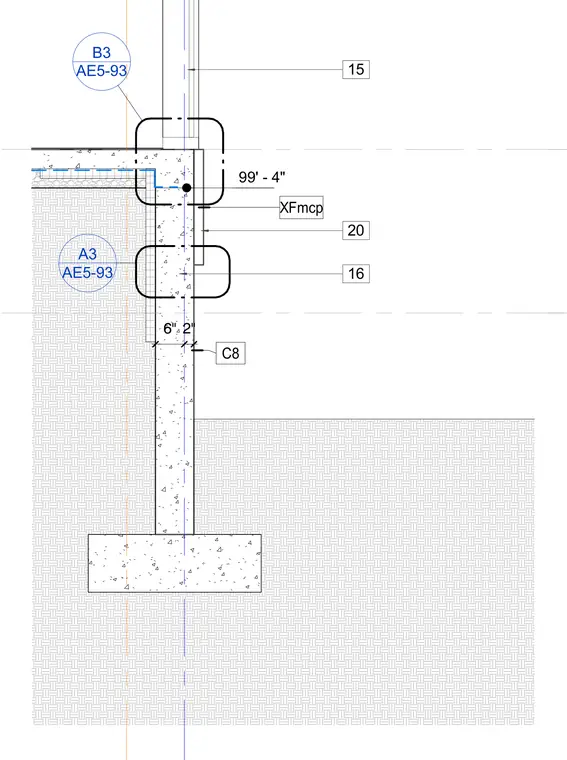

This wall section details the exterior facade meeting the concrete foundation wall and floor slab assembly. A continuous concrete foundation wall supports the superstructure with a dimensioned thickness and elevation marker. The intersection incorporates waterproof detailing and connection callouts referencing related sheet details.
