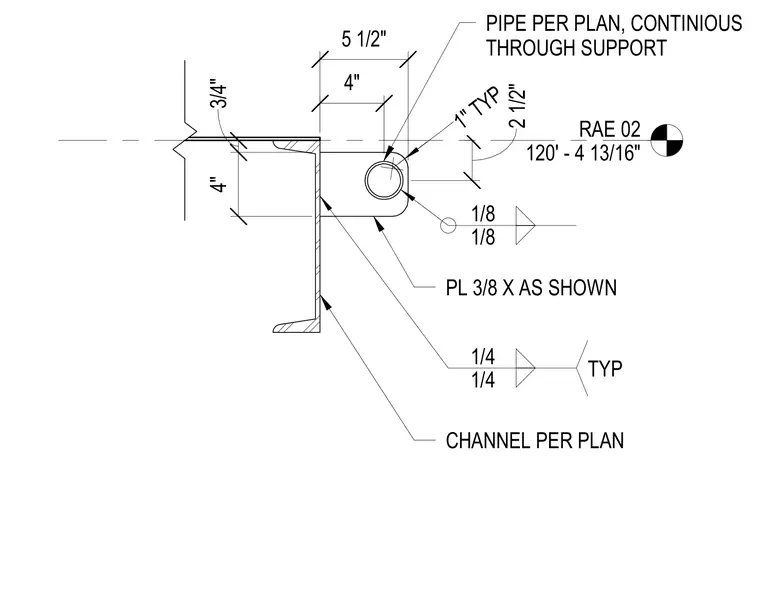

A continuous pipe per plan runs through a support bracket fabricated from a three-eighths inch thick steel plate. The plate is welded to a structural steel channel sized per plan with typical quarter-inch fillet welds. The pipe connection is detailed with a one-eighth inch fillet weld typical. Key dimensions include a four-inch channel depth, a five-and-a-half-inch overall bracket width, and a one-inch typical clearance.
RAE 02 120' - 4 13/16" 2 1/2" 4" CHANNEL PER PLAN PIPE PER PLAN, CONTINIOUS THROUGH SUPPORT 5 1/2" 3/4" 4" PL 3/8 X AS SHOWN 1" TYP 1/8 1/8 1/4 1/4 TYP
