An HSS tube steel column finished with a high performance coating serves as the primary structural support. Lighting fixtures are coordinated and installed per the architectural lighting drawings.

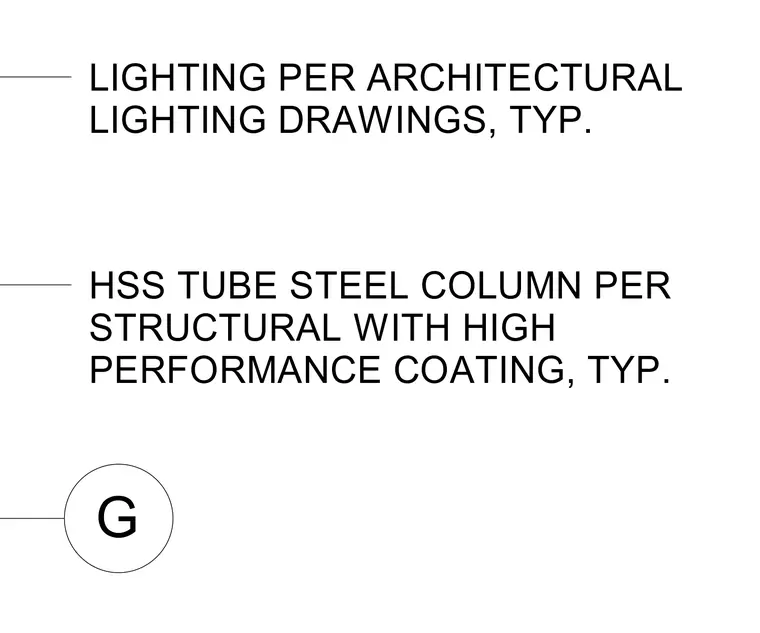

G HSS TUBE STEEL COLUMN PER STRUCTURAL WITH HIGH PERFORMANCE COATING, TYP. LIGHTING PER ARCHITECTURAL LIGHTING DRAWINGS, TYP.
