Architectural · A-HW77F

Wall Mounted Handrail Clearance and Return Detail

Elements

Columns Walls Railings / Guards Floors / Slabs

About this detail

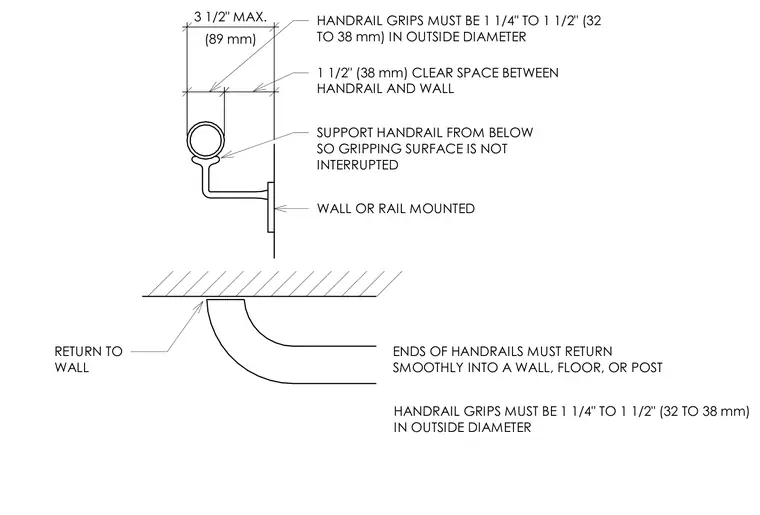

A wall-mounted handrail features a gripping surface with an outside diameter between one and a quarter to one and a half inches, providing an uninterrupted grip supported from below. A clear space of one and a half inches is maintained between the handrail and the wall, with a maximum projection of three and a half inches. The ends of the handrail return smoothly into the wall, floor, or post to prevent snagging.
