Wall Stud Backup Framing Detail for Casework and Fixtures

Materials

Elements

About this detail

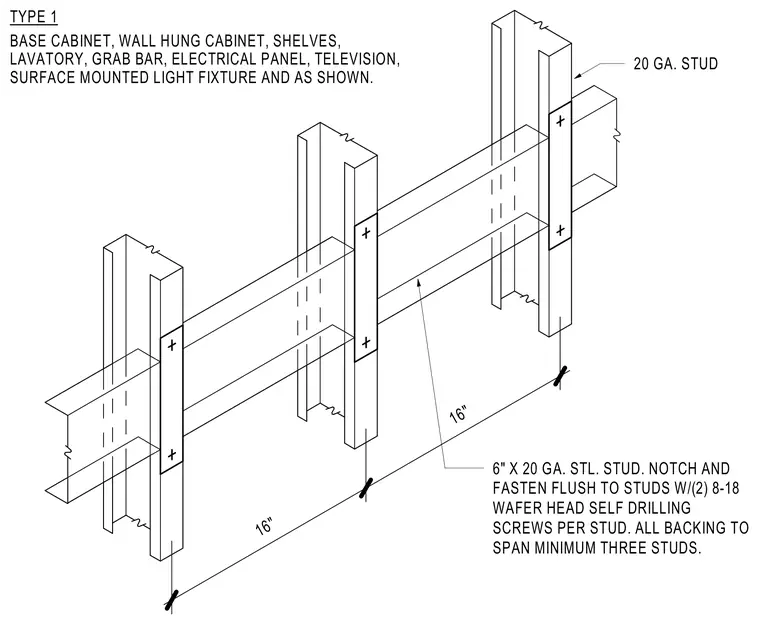

Continuous 6-inch by 20-gauge steel stud backing is notched and fastened flush to vertical 20-gauge steel studs using two 8-18 wafer head self-drilling screws per stud. The horizontal backing member spans a minimum of three studs to provide rigid support for wall-hung cabinets, lavatories, grab bars, electrical panels, televisions, and surface-mounted light fixtures.
