Continuous acoustical sealant is applied around the entire perimeter of the partition framing. Outlet boxes are installed within the scheduled partition assembly with associated box pads and sound attenuation measures.

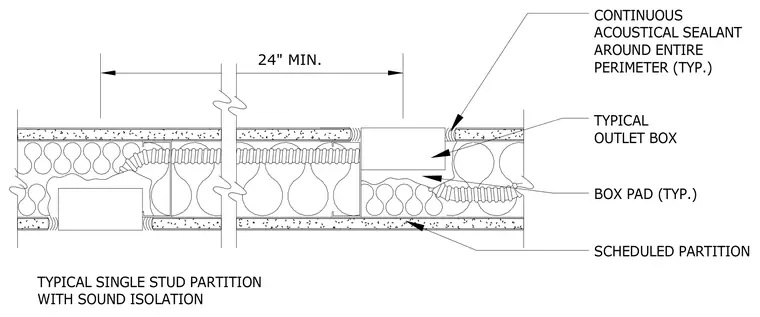

24" MIN. CONTINUOUS ACOUSTICAL SEALANT AROUND ENTIRE PERIMETER (TYP.) TYPICAL OUTLET BOX BOX PAD (TYP.) SCHEDULED PARTITION TYPICAL SINGLE STUD PARTITION WITH SOUND ISOLATION
