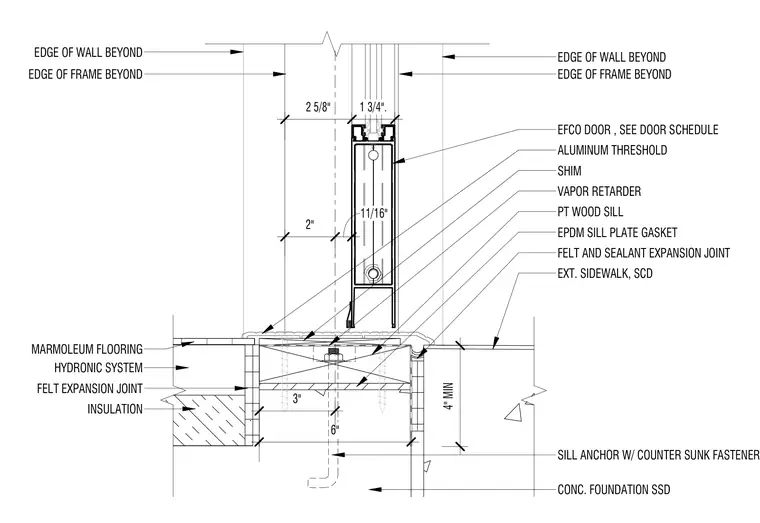

An Efco aluminum door threshold sits atop a pressure-treated wood sill with shims and an ethylene propylene diene monomer sill plate gasket. The wood sill is secured to a concrete foundation with a sill anchor using countersunk fasteners. A vapor retarder, felt paper, and sealant form an expansion joint between the interior flooring assembly and the exterior sidewalk. The interior floor construction incorporates insulation, a felt expansion joint, a hydronic heating system, and marmoleum flooring.
EFCO DOOR , SEE DOOR SCHEDULE ALUMINUM THRESHOLD SHIM VAPOR RETARDER PT WOOD SILL EPDM SILL PLATE GASKET FELT AND SEALANT EXPANSION JOINT EXT. SIDEWALK, SCD CONC. FOUNDATION SSD SILL ANCHOR W/ COUNTER SUNK FASTENERS, SSD INSULATION HYDRONIC SYSTEM MARMOLEUM FLOORING FELT EXPANSION JOINT 6" 2 5/8" 1 3/4". 2" 11/16" 3" 4" MIN EDGE OF WALL BEYOND EDGE OF FRAME BEYOND EDGE OF WALL BEYOND EDGE OF FRAME BEYOND
