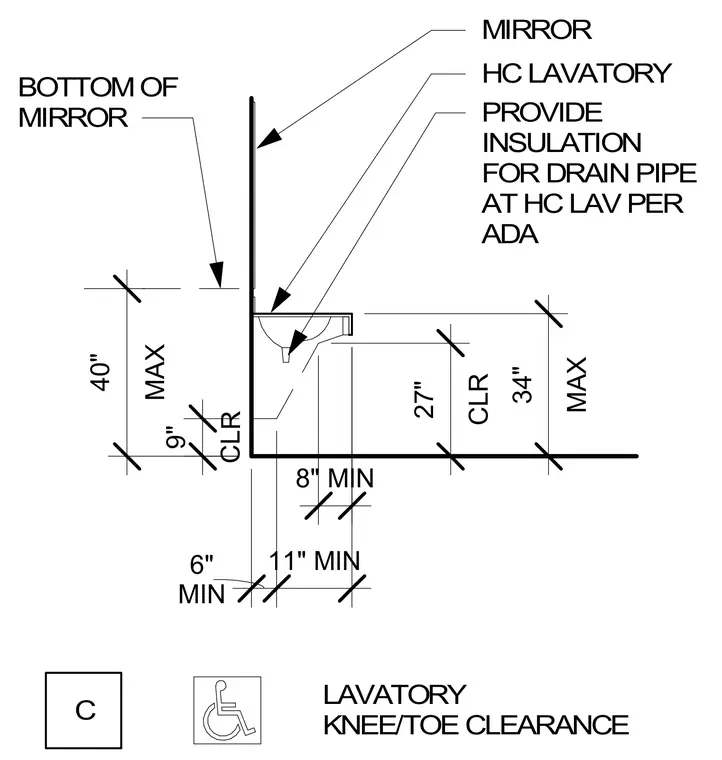

An accessible lavatory installation featuring required knee and toe clearances, rim height, and mirror mounting positions per ADA standards. The lavatory includes pipe insulation wrapped around the drain to prevent contact. Vertical dimensions establish a maximum thirty-four inch rim height, twenty-seven inch minimum knee clearance, and a forty inch maximum height for the bottom of the mirror. Horizontal dimensions provide an eight inch minimum toe depth, six inch minimum toe height, and eleven inch knee depth.
LAVATORY KNEE/TOE CLEARANCE C MIRROR HC LAVATORY PROVIDE INSULATION FOR DRAIN PIPE AT HC LAV PER ADA BOTTOM OF MIRROR MAX 40" CLR 9" CLR 27" MAX 34" 8" MIN MIN 6" 11" MIN
