Architectural · A-HV6YA

1 Hr Unit-To-Corridor Demising Wall

Materials

Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

About this detail

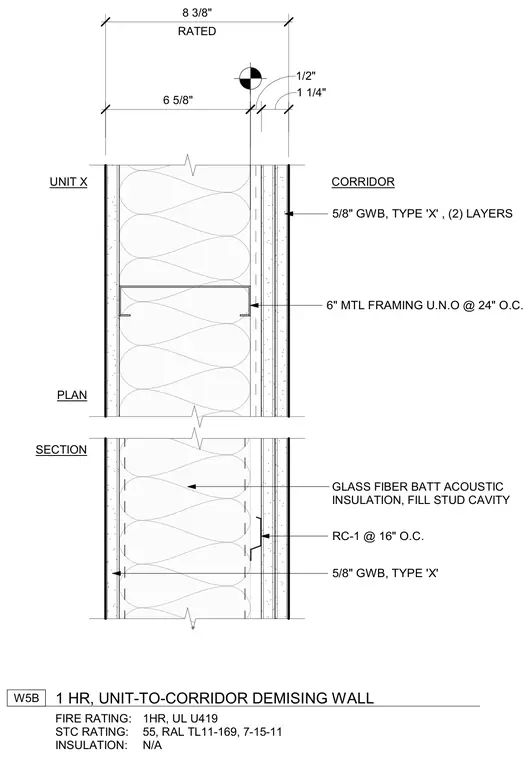

This one-hour fire-rated demising wall assembly separates residential units from common corridors using six-inch metal framing spaced at twenty-four inches on center unless noted otherwise. The stud cavity is filled with glass fiber batt acoustic insulation. The corridor side features resilient channels installed at sixteen inches on center beneath two layers of five-eighths-inch Type X gypsum wallboard. The unit side is finished with a single layer of five-eighths-inch Type X gypsum wallboard directly attached to the metal framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
