Twelve-gauge bracing wire is secured with a minimum of four tight turns in one and a half inches at both ends. The wire connects to main runners at ninety degrees apart with four total connections at each strut unless noted otherwise.

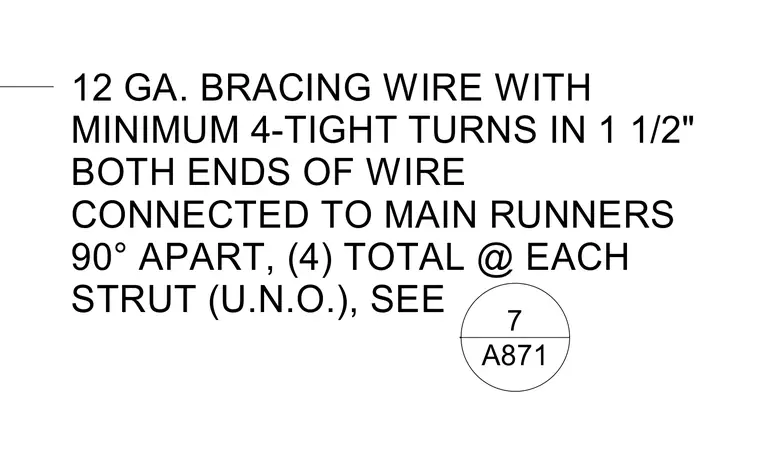

A871 7 12 GA. BRACING WIRE WITH MINIMUM 4-TIGHT TURNS IN 1 1/2" BOTH ENDS OF WIRE CONNECTED TO MAIN RUNNERS 90° APART, (4) TOTAL @ EACH STRUT (U.N.O.), SEE
